RF & Microwave

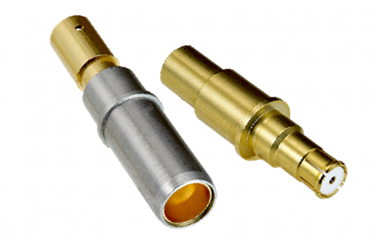

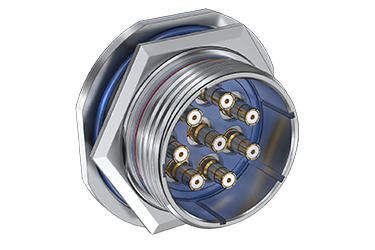

Series 852 Coax Contacts for multi-port military/aerospace connectors. 50 ohm and 75 ohm. Contacts snap into rear-release Glenair Series 23 SuperNine, Series 80 Mighty Mouse, Series 795 Micro-Crimp, and Series 806 RF connectors. Consult the factory for use with MIL-DTL-38999 connectors. Available in sizes 8, 12, and 16, these contacts are compatible with popular “RG” coax cable sizes.

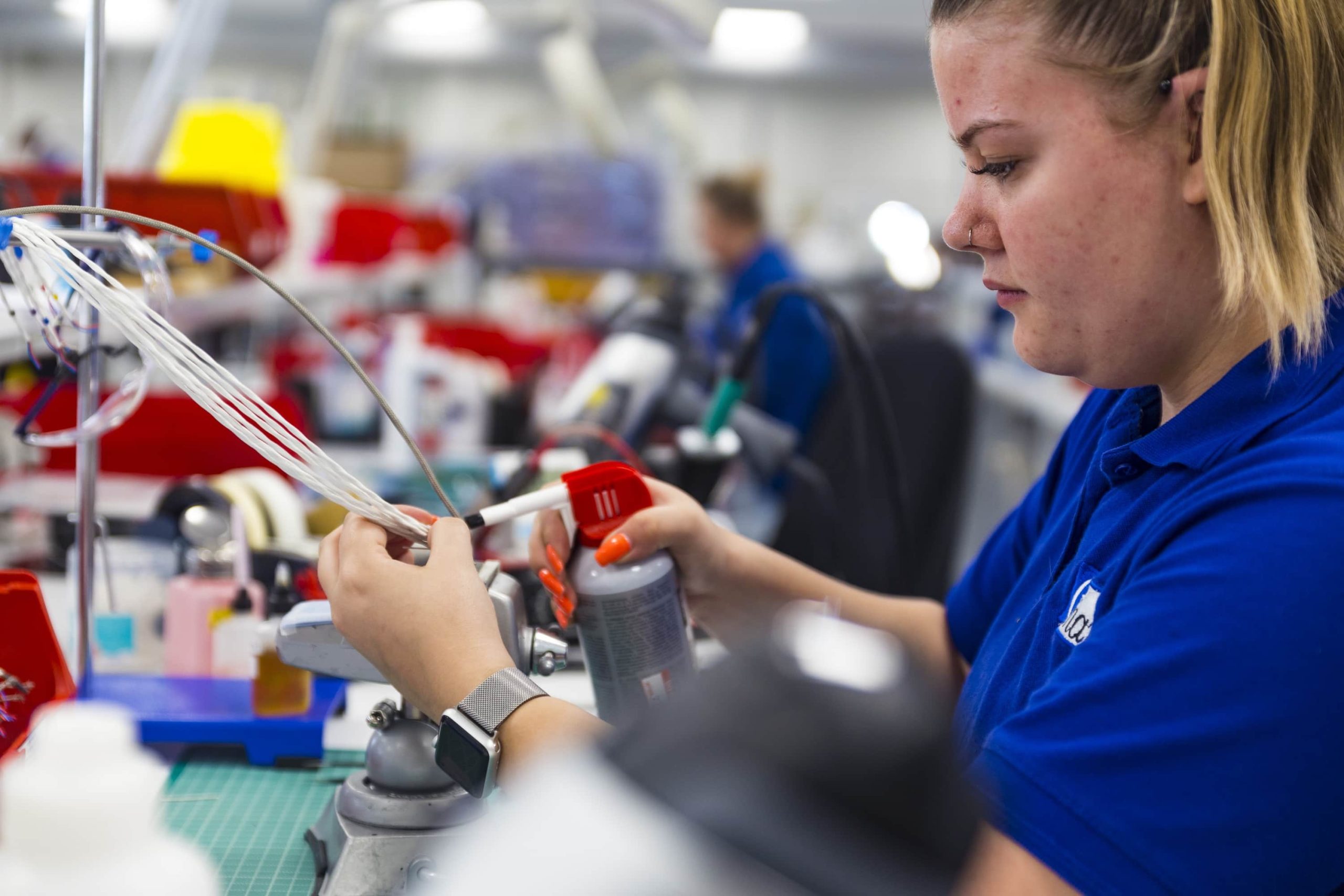

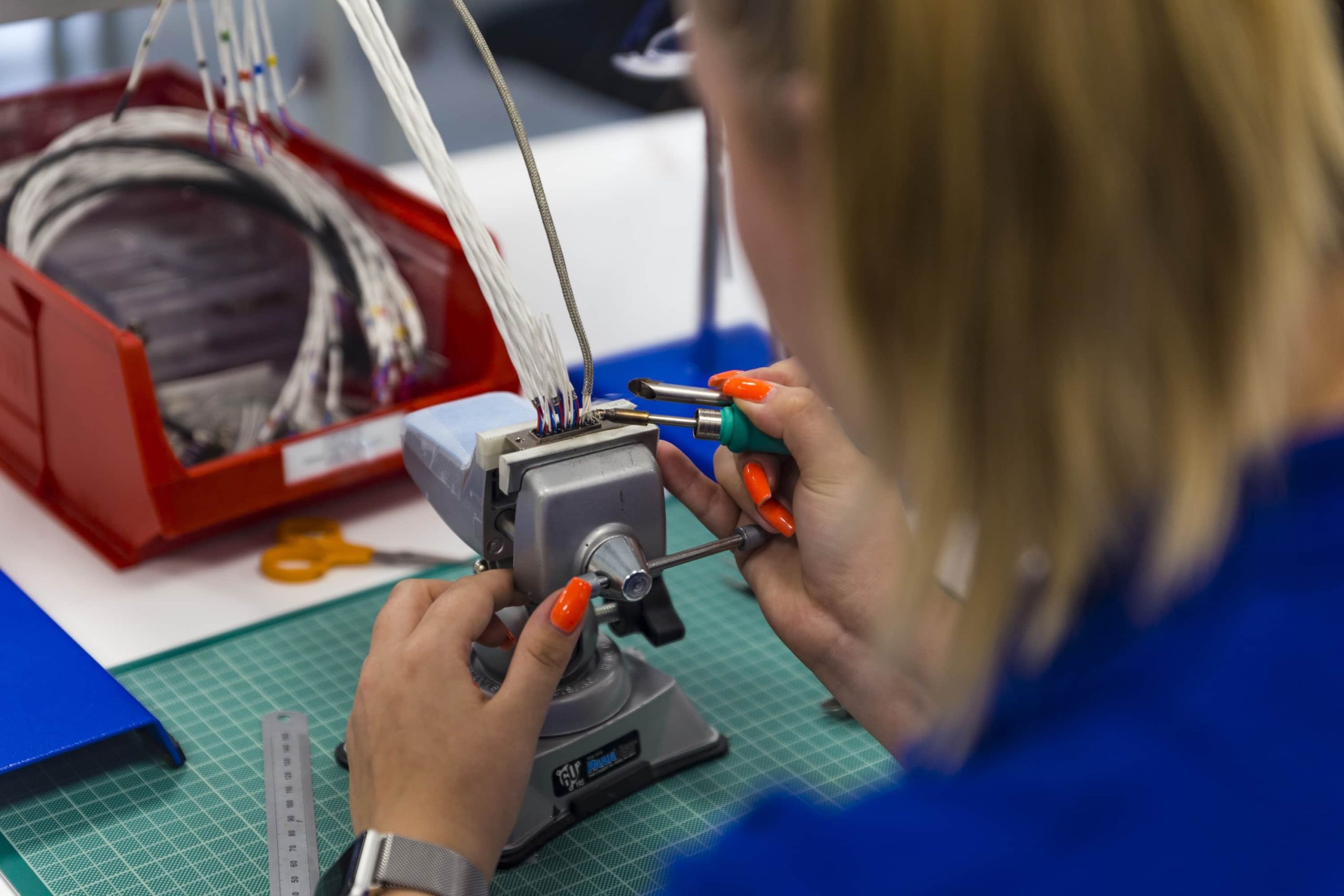

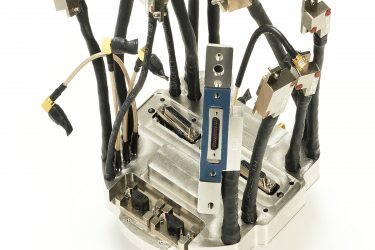

Glenair has been a go-to cable house for high-performance interconnect cable assemblies for more than 50 years. We specialise in delivering terminated, tested cable harnesses and assemblies with 100% reliability and quality control. We offer complete, bespoke cable assembly services from design engineering to fabrication and test.

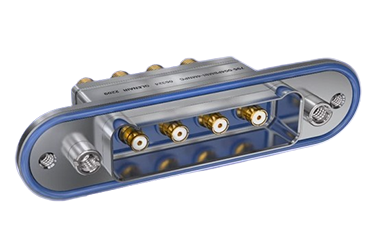

Series GMMD is an innovative modular Micro-D connector for RF coax and high-speed differential datalink applications. The unique micro-miniature design of the GMMD also accommodates standard analogue signal and power contacts, making it the most versatile Micro-D rectangular in the industry.

High-speed connectors and contacts are optimized for compatible performance with popular data transmission protocols.

Glenair’s Complete Micro-D Product Line includes Solder Cup, Pre-Wired or PCB versions. Glenair Micro-D connectors always use TwistPin Contacts for high performance.

Series 806 RF connectors have machined aluminum or stainless steel shells and fluorosilicone grommet for environmental protection. Plugs feature a copper alloy ground spring for EMI protection. Eighteen contact layouts available in eleven different shell sizes. Supplied without contacts, order #8 BMB, #12 SMPM, or #16 SMPS contacts separately.

Series 795 connectors accomodate up to nine size 8 BMB-style coax contacts. Contacts snap into connector body and are removable. Environmentally protected with fluorosilicone face seal and rear grommet. One piece connector shell provides a common ground plane and also eliminates EMI radiation through the connector.

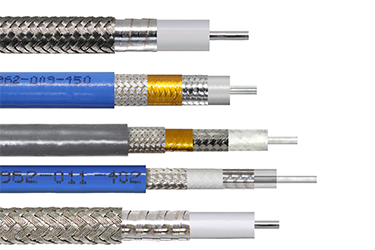

Series 962 50 Ohm Coax Cables are available in seven size categories: 047, 086, 160, 200, 235, 300 and 450. These low-attenuation cables are suitable for aerospace applications and test equipment. Jacket options include FEP and radiation-resistant space-grade ETFE. Triple-shielded high-performance cables have expanded PTFE dielectric cores for low loss up to 40 GHz.

Glenair manufactures all of the popular industry-standard rectangular connectors used in military, aerospace and other high reliability applications, including special high-performance versions of the M24308 D-Sub and our revolutionary Series 79 Micro-Crimp connector.

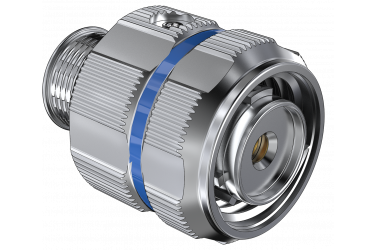

Precision-grade Series 852 RF Adapters are used to connect between series or within a series. Frequently used as connector savers, male-female adapters protect RF jacks on instruments from excessive wear-and-tear. 45° and 90° angled SMA male-female adapters provide extra clearance in cramped quarters.

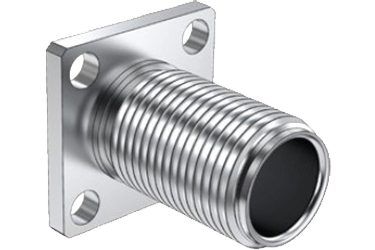

RF connector accessories include Protective Covers and Dummy Receptacles for standard RF coax connectors. Aluminium or stainless steel covers have sealing gaskets and a variety of attachment styles. Panel-mounted Dummy Receptacles provide stowage and protection for RF cables.

233-290 connectors have machined aluminum or stainless steel shells and fluorosilicone grommet for environmental protection. Plugs feature a copper alloy ground spring for EMI protection. Fifteen contact layouts available in eight different shell sizes. Supplied without contacts, order #8 BMB, #12 SMPM, or #16 SMPS contacts separately.
